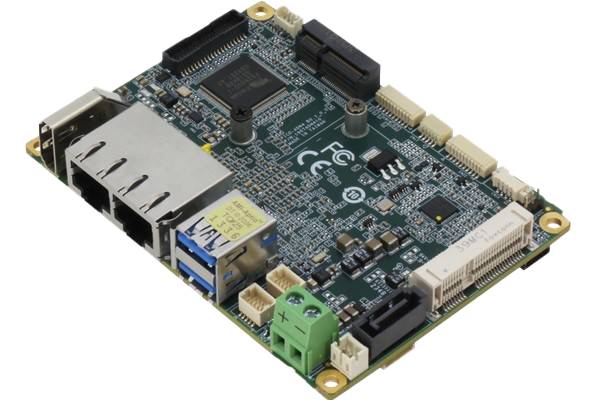

PICO-ADN4-REV.B

■ Intel® Processor N150 & Intel® Core™ 3 Processor N355
■ DDR5 4800MHz SODIMM x 1, up to 16GB
■ HDMI 1.4 x 1, eDP 1.4b/LVDS x 1
■ Intel® Ethernet Controller I226, 2.5GbE RJ-45 x 1, Realtek RTL8111H, 1GbE RJ-45 x 1
■ Full-size mSATA/mPCIe x 1, M.2 2230 E-Key x 1
■ USB 3.2 Gen2[x1] x 2, USB 2.0 x 4
■ RS-232/422/485 x 2, RS-232 x 2
■ TPM 2.0, SATA 6Gb/s x 1, 4-bit GPIO, SMBus/I2C x 1
