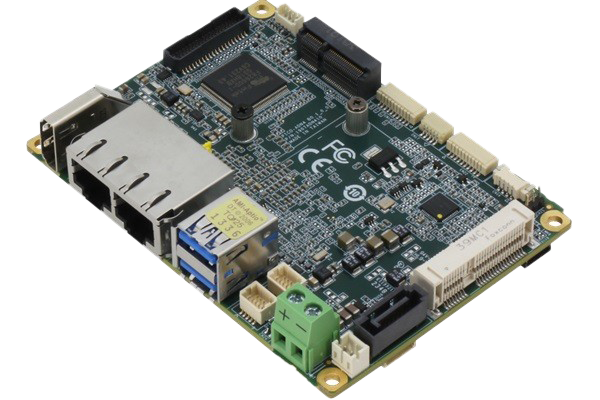

PICO-ASL4 Rev.B

■ Intel Atom® x7000RE series
■ DDR5 4800 MHz, SODIMM x 1, Up to 16GB
■ HDMI1.4 x 1, eDP1.4b/LVDS x 1
■ Intel® i226v 2.5GbE, RJ-45 x 1 , REALTEK.RTL8111H 1GbE, RJ-45 x 1
■ Full-Size mSATA/mPCIe x 1, M.2 2230 E-key x1
■ USB 3.2 Gen2[x1] x 2 ports, USB2.0 x 4,
■ RS-232/422/485 x 2, RS-232 x 2
■ TPM2.0, SATA 6.0Gbps x 1, GPIO 4-bit, SMBUS/I2C x 1
■ DC 9~36V input (Optional, support by power adapter card)
